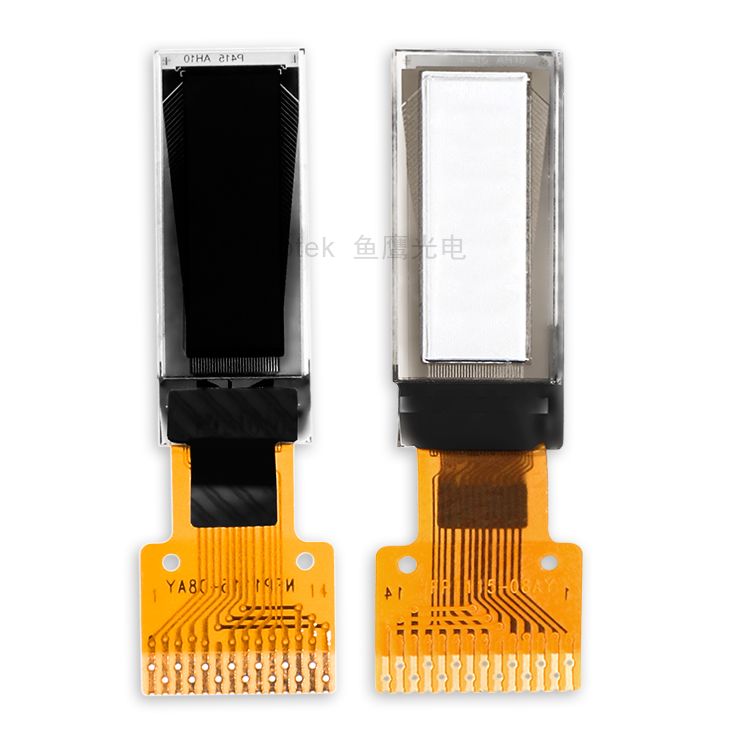

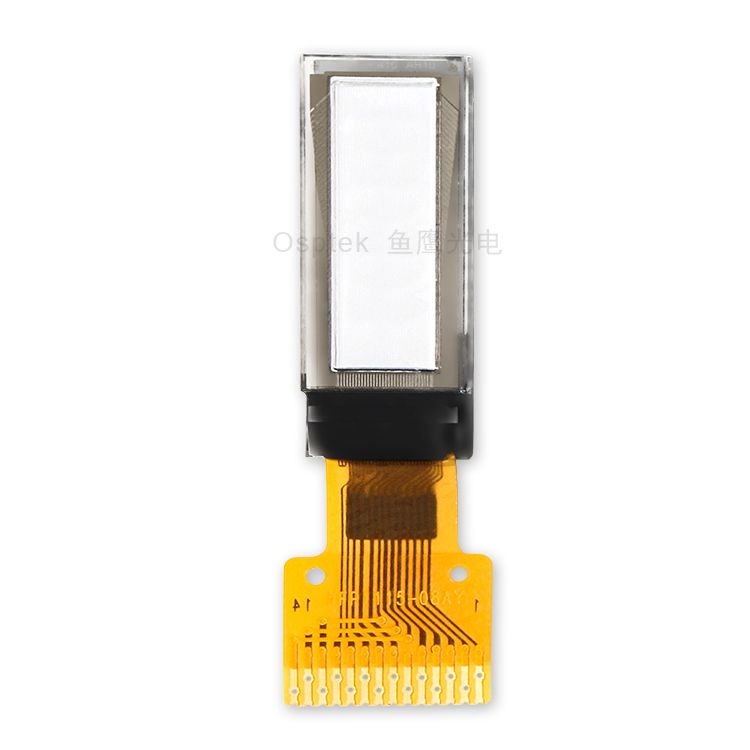

0.54 inch White OLED Display
> Model:
OED054-9632W002-H14
> Size:
0.54''Diagonal | 32x96 Pixels
> Display Color:
White
> Display Type:
PMOLED
> Driver IC:
> Resources:Specifications
> Initial code:0.54'' 9632(CH1115)
Click the underlined blue font to download the documents！
Description
Quality Standards
Our Distributors
OED054-9632W002-H14 | 96x32 Pixels | CH1115 Driver IC | White Monochrome Color | I2C Interface
This 0.54 inch 96x32 resolution graphic OLED presents bright White graphics on a black background with high speed response times along with high contrast visibility from any angle. This self-illuminating module has I2C interface compatibility. The display has a built-in CH1115 controller, operates at 2.8V supply voltage and is RoHS compliant.
Product Specifications
Model
OED054-9632W002-H14
Size
0.54''Diagonal | 32x96 Pixels
Interface
I2C
Driver IC
CH1115
Display Color
White
Display Type
Graphic OLED Glass
Outline L x W x H
18.52mm x 7.04mm x 1.22mm
Active Area L x W
12.46mm x 4.14mm
Dot Size L x W
0.11mm x 0.11mm
Dot Pitch L x W
0.13mm x 0.13mm
Supply Voltage
2.8V
Connection Type
14 pin FPC
Operating Temperature
-40°C ~ 70°C
Storage Temperature
-40°C ~ 85°C
