HTN Glass Display | Segment Display Module
> Model:
HHB88128-990
> Size:
/
> Display Type:
Segment Display
> Interface:
SPI
> Backlight Color:
White
> Driver IC:
> Resources:Specifications
> Initial code:HHB88128
Click the underlined blue font to download the documents！
Description
Quality Standards
Our Distributors

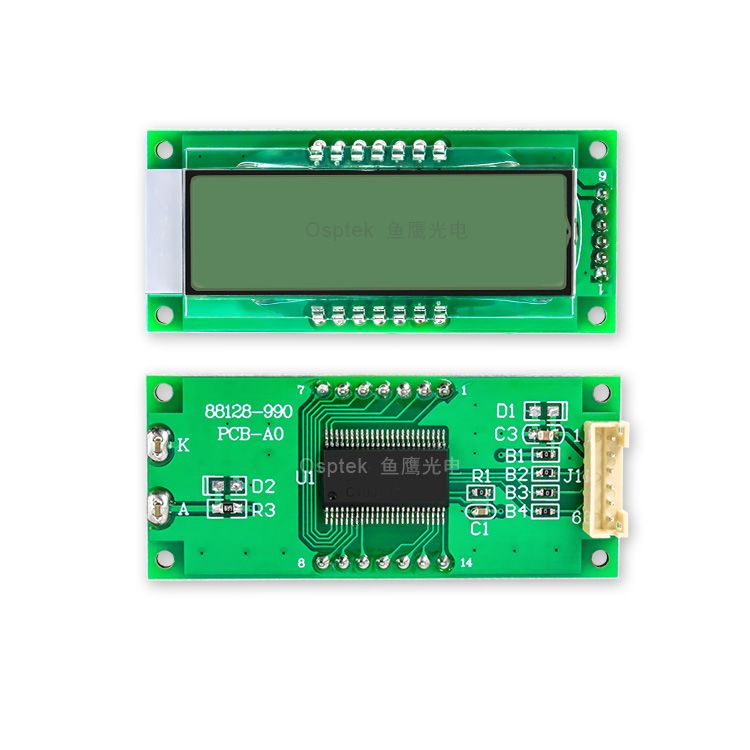

HHB88128-990 | Segment Display Module | 1/4 Duty，1/3 Bias | HTN Positive Display
This segment display module shows dark pixels on a white background. This HTN glass display delivers high contrast characters while offering a wide operating temperature range from -20 to 70 degrees Celsius. This segment display has an optimal view of 6:00, operates at 3.0V supply voltage and is RoHS compliant.
Product Specifications
Model
HHB88128-990
Size
/
Backlight Color
White
Interface
SPI
Driver IC
HT1621
Display Type
HTN
Drive Method
1/4 Duty，1/3 Bias
Outline L x W x H
60.0mm x 26.0mm x 6.7mm
Viewing Area L x W
46.0mm x 13.5mm
Supply Voltage
3.0V
Connection Type
Pin
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 80°C
