1.47 inch IPS SPI Interface TFT Display with glass cover board
> Model:
YDP147HT003-V3
> Size:
1.47''Diagonal | 172x3x320 Pixels
> Display Type:
IPS
> Interface:
SPI
> Driver IC:
> Resources:Specifications | 3D Render
> Initial code:1.47''IPS NV3030B
Click the underlined blue font to download the documents！
Description
Quality Standards
Our Distributors

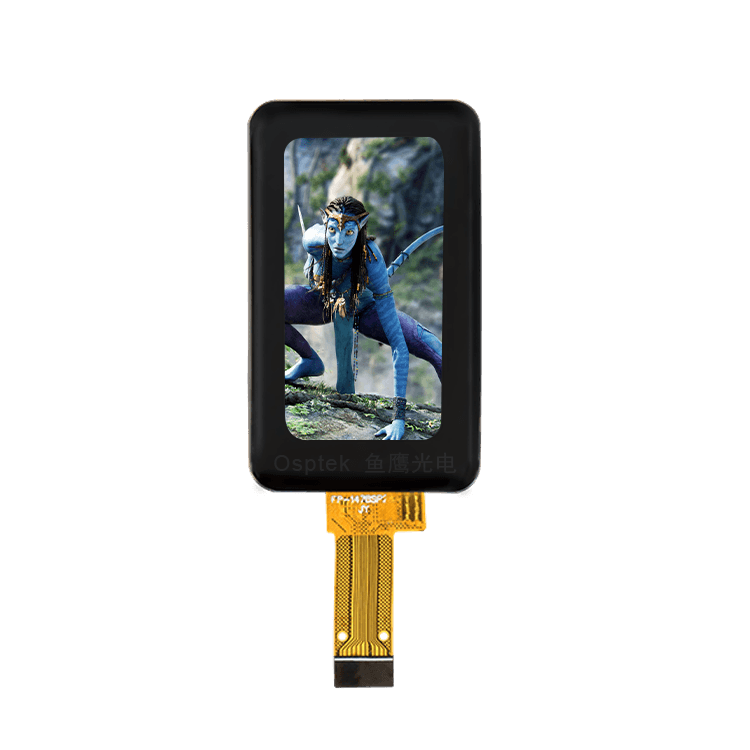

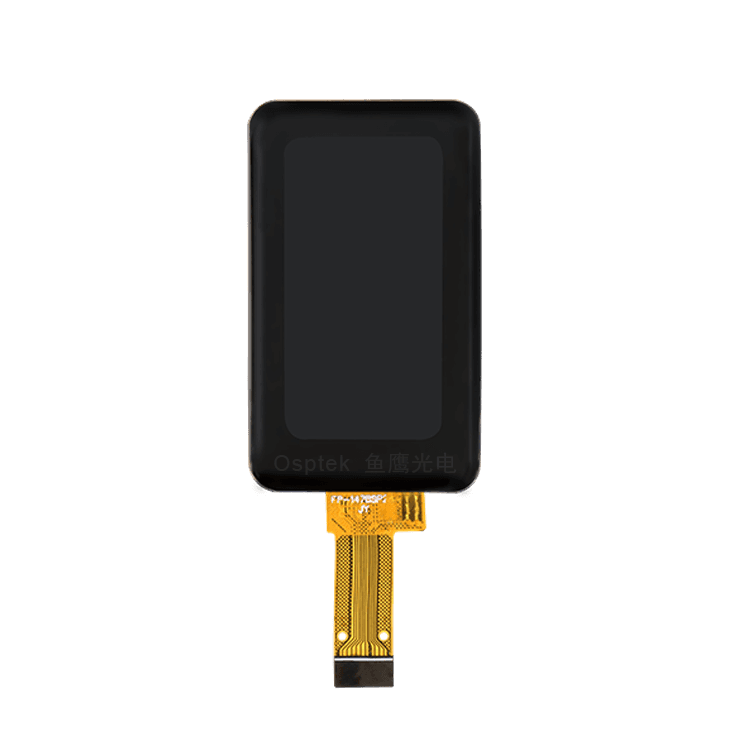

YDP147HT003-V3 | 1.47 inch TFT | 172x320 Pixels | IPS Panel | Serial Interface
This 172x320 resolution LCD TFT with glass cover board is a Premium display with Serial interface, full view TFT display. This LCD monitor has a built-in ST7789T3 controller, FPC ZIF connection, and is RoHS compliant. Customers can customize different connections.
Product Specifications
Model
YDP147HT003-V3
Size
1.47''Diagonal | 172x3x320 Pixels
Display Type
IPS
Interface
SPI
Driver IC
NV3030B
Optimal View
All View
Outline L x W x H
24.5mm x 41.5mm x 4.63mm
Active Area L x W
17.39mm x 32.35mm
Supply Voltage
2.8V
Luminance
350 TYP
Connection Type
12 pin FPC
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 80°C
Custom Solutions
Connector Customization
Easily modify any connectorson your display to meet yourapplication’s requirements. Soldering for pin headers,boxed headers, right anglesheaders, and any otherconnectors which your displaymay require.
PCB Modifications
Choose from a wideselection of changesincluding shape, size,pinout, and componentlayout of your PCB tomake it a perfect fit foryour application.
Mounting Add-Ons
Examples might includebezels, gaskets, metalmounting brackets, threadedstandoffs or pressuresensitive adhesive (PSA).
Custom Backlight
Custom backlightconfigurations can be madewith voltage/input current,brightness or colors/NVIS. Perhaps it is just changing theassembly type from array toside LEDs.
Cable Customization
Adjust length, position, and pinout of your cables or add additional connectors. Get a cable solution designed to make your connections streamlined and secure.
Touchscreen Add-on
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Cover Glass
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.
